Bamdura EcoArmor™
Heavy-duty hybrid bamboo composite support beams and cribbing blocks for heavy civil infrastructure. High-tonnage load capacity meets carbon-negative engineering.
Hybrid bamboo composite support beams & cribbing blocks
Engineered to replace short-lived hardwood timbers and heavy steel pads, Bamdura EcoArmor™ provides high-tonnage structural support for heavy civil infrastructure and demanding jobsite environments.
Strand bamboo armor • Glulam shock-absorbing core • UV-resistant industrial shield • Rapidly renewable bio-based structure
Advanced multi-layer architecture

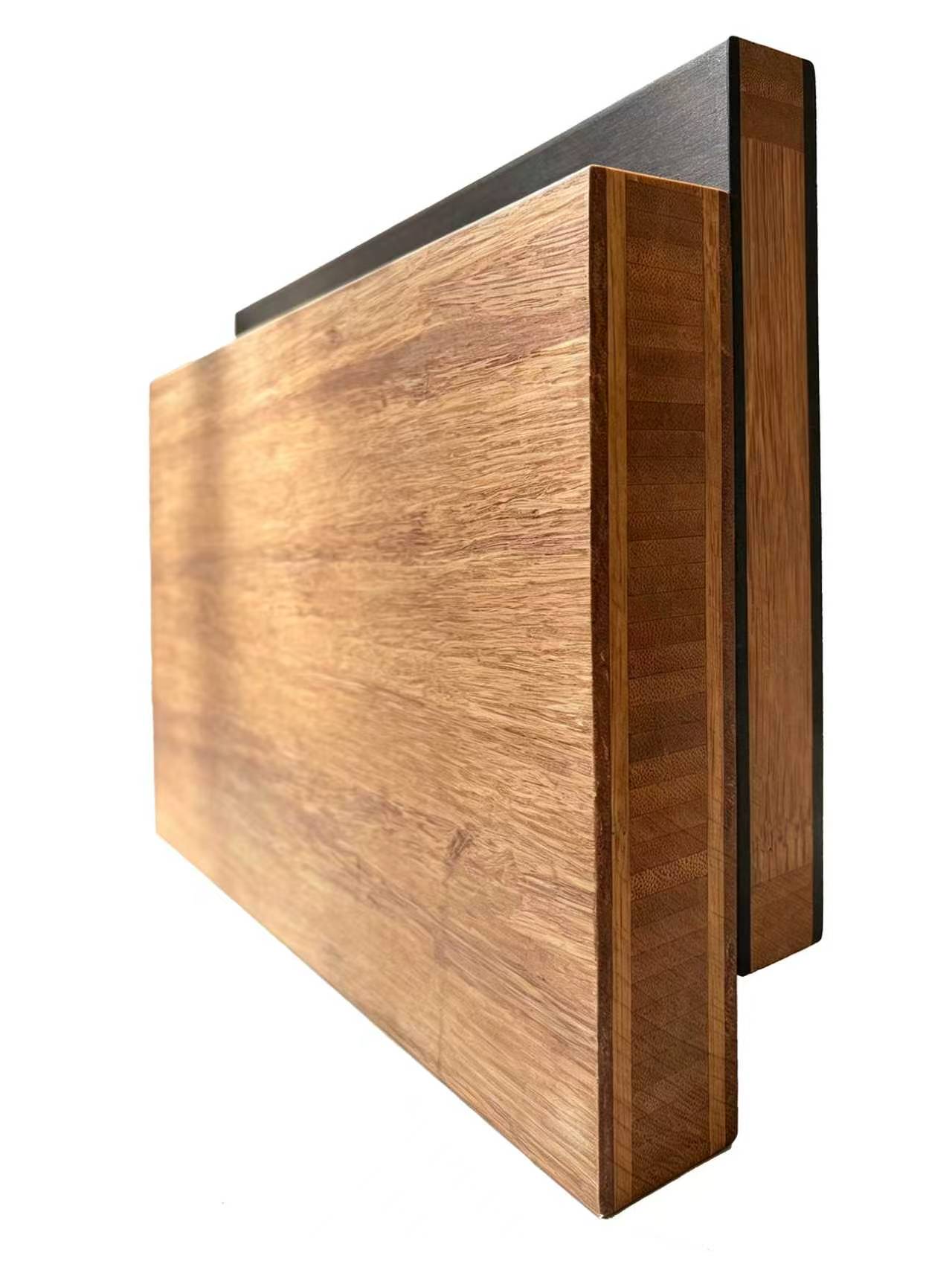

The composite profile consists of two functional layers:

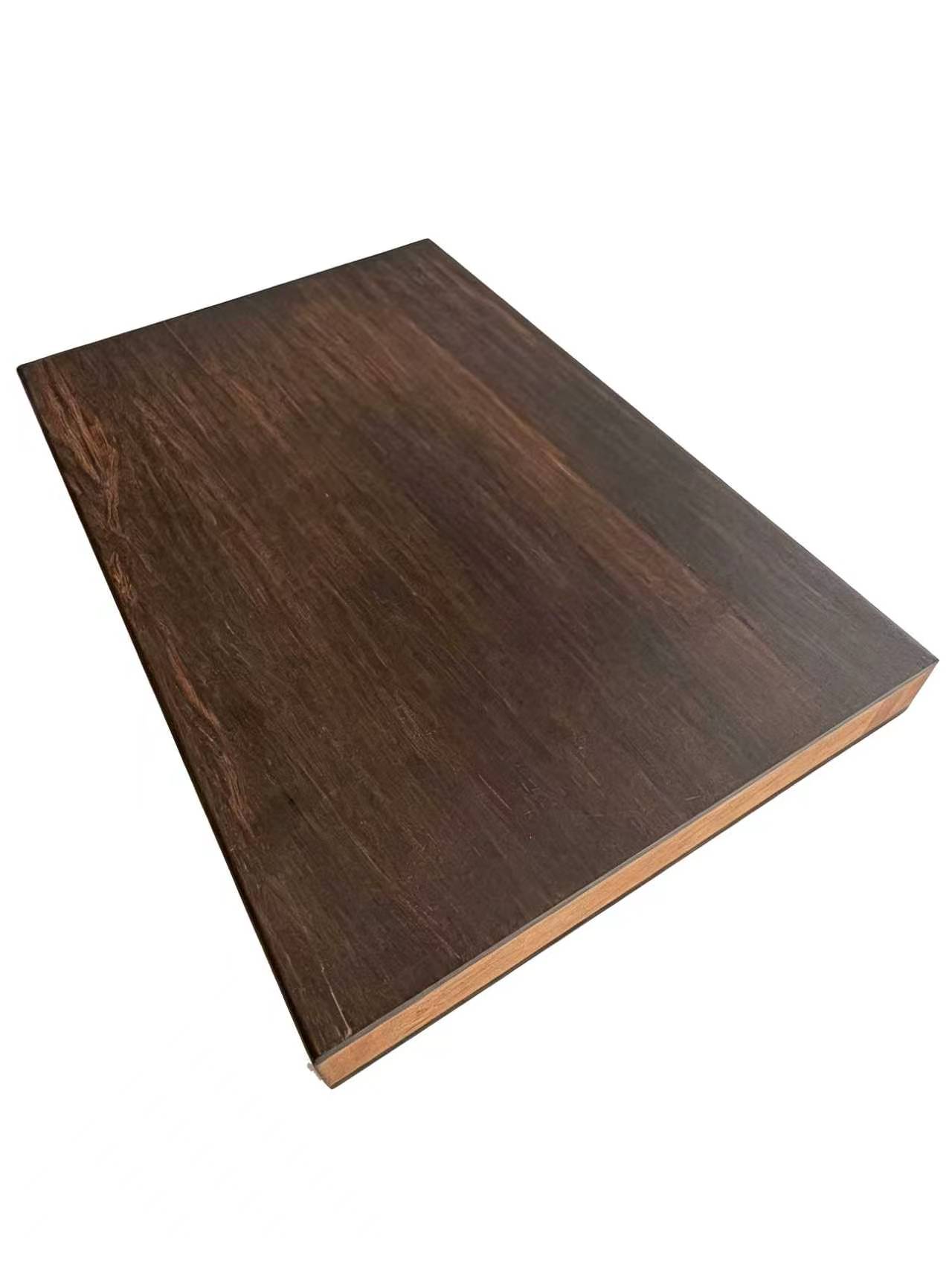

- Outer wear armor: high-density, thermally compressed strand woven bamboo delivering rock-solid compressive strength and scratch resistance against steel tracks and heavy outriggers.
- Elastic structural core: an engineered bamboo glued laminated core that absorbs dynamic shock, minimizes internal stress and reduces overall dead weight.
Manufactured in dimensions up to 8000 × 200 × 200 mm, each beam is sealed with a UV-resistant, weatherproof industrial coating and features an embossed anti-slip traction pattern. EcoArmor™ delivers an unyielding foundation for bridge jacking, temporary cribbing and ground protection while actively reducing your project’s carbon footprint.
Key engineering advantages of EcoArmor™
Designed for high point loads, heavy tracked vehicles and extreme weather conditions.
Armor-grade surface hardness
The strand woven bamboo outer layer resists indentation, crushing and splintering from crawler crane tracks and excavator grouser shoes.
Shock absorption & lower weight
The laminated bamboo core cushions heavy impacts and vibrations. Lighter than full solid strand composites: faster, more economical transport and crane handling.
UV-resistant & weatherproof seal
Multi-component system of modified epoxy, polyaspartic polyurea and ultra-wear polyurethane. Waterproof and resistant in marine, desert and swamp environments.
Certified heavy-traction grip (BPN > 0.75)

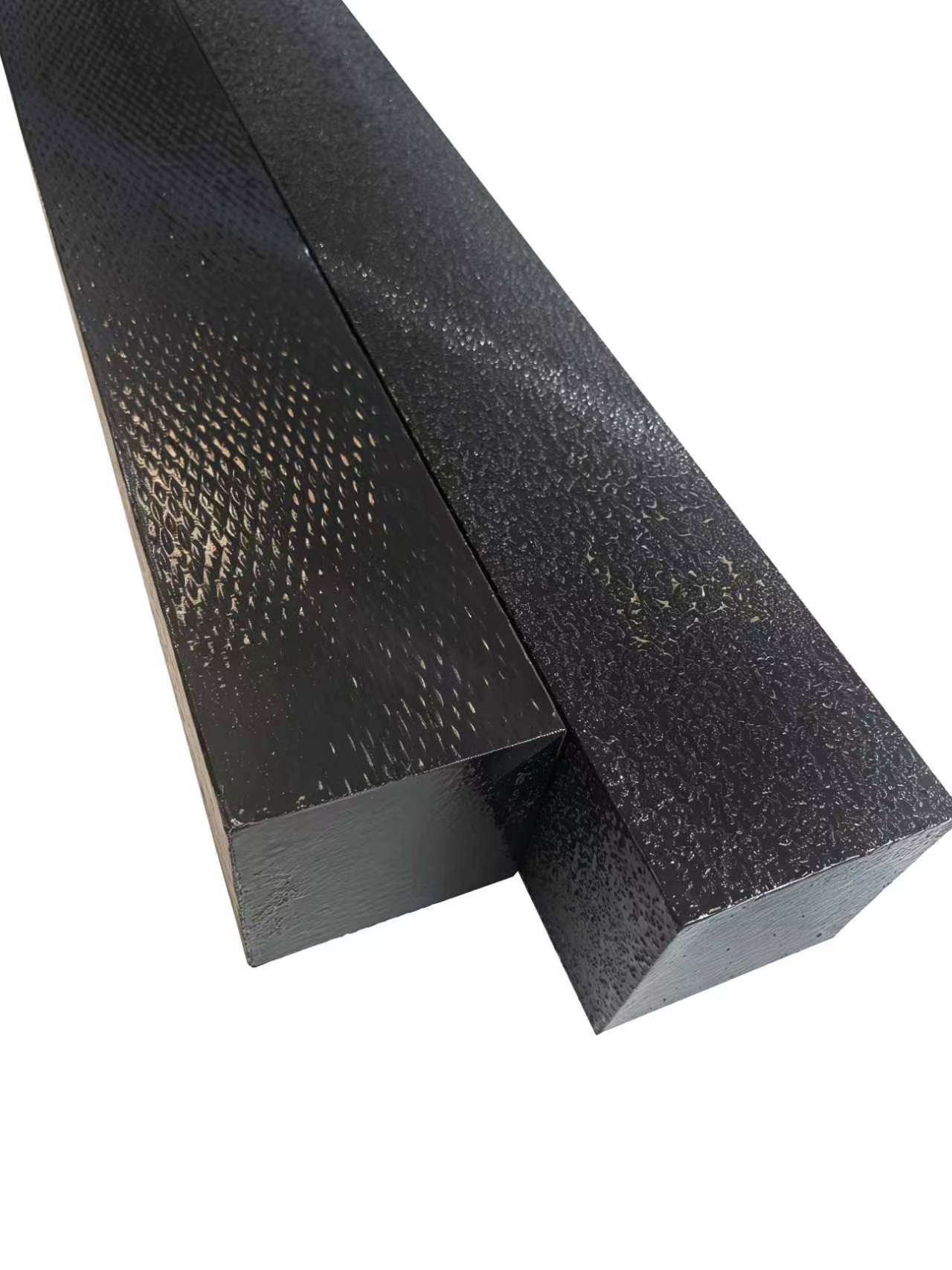

Tested under a 15-ton metal-track vehicle with zero slip. Silicon carbide grit, vacuum-calcined at 1200 °C (Shore > D80), that does not pull out under heavy loads.
Flexible & delamination-resistant
Coating hardness > Shore D70. After a 10-ton load for 1 hour and 500% flexural recovery: zero cracking and zero delamination.
All-weather climate durability
QUV > 5000 hours (ΔE ≤ 1.5). Stable from -40 °C to +60 °C. Zero degradation after 90 days of salt-water immersion.
Innovative composite coating system

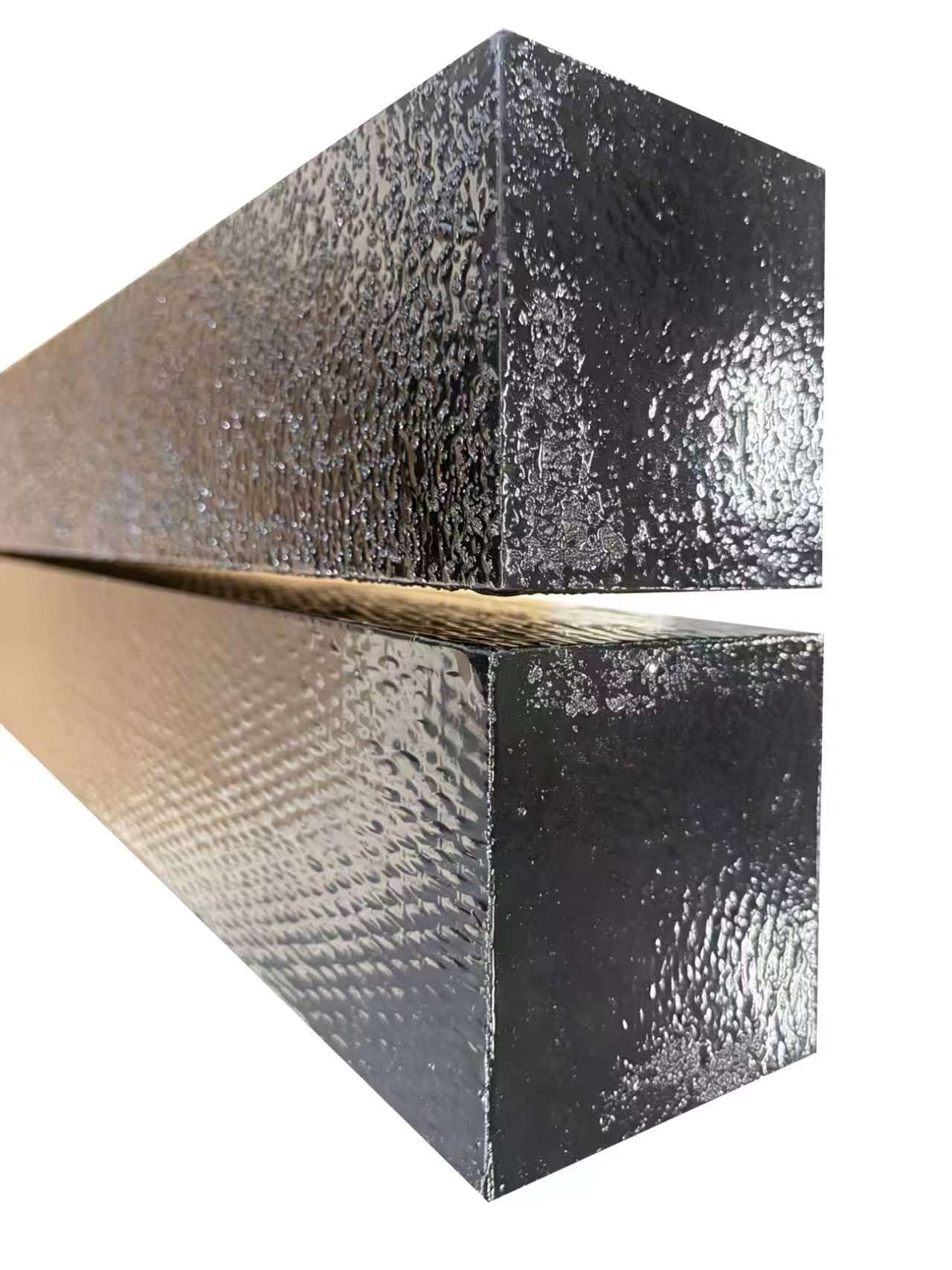

The beam profile is coated with an innovative multi-component protective system formulated with modified epoxy, polyaspartic pure polyurea and ultra-wear polyurethane. Embedded with ceramic-vitrified silicon carbide abrasive grit, it delivers uncompromised traction, all-weather waterproofing and exceptional resistance to steel-track crushing in marine, desert and swamp environments.
Tested under extreme conditions
Proven coating performance:
- Anti-slip BPN > 0.75, tested with a 15-ton tracked vehicle
- Through-body colored corundum grit (Shore > D80): no grain fracture or pull-out
- Surface hardness > Shore D70
- UV-resistant: QUV > 5000 hours (ΔE ≤ 1.5)
- -40 °C to +60 °C without color change, softening or chalking
- Zero VOCs and no odor: safe on the jobsite and ESG-compliant
The result: a surface that is waterproof, anti-corrosion, wear-resistant, anti-slip and weatherproof, all at once.
Standard anti-slip coating vs. EcoArmor™ coating
The innovative composite coating system compared with a standard anti-slip coating.
| Test item / performance | Standard anti-slip coating | EcoArmor™ composite coating |
|---|---|---|
| Environmental versatility | Limited; cannot combine full waterproof, anti-corrosion and anti-slip properties | Simultaneously waterproof, anti-corrosion, wear-resistant, anti-slip and weatherproof |
| Chemical structure | Standard polyurea | Modified epoxy / polyaspartic polyurea / polyurethane composite |
| Coating flexibility (10 t / 1 h) | Cracks / delaminates after 300% deformation recovery | Zero cracking or delamination after 500% deformation recovery |
| Skid resistance (15 t track vehicle) | BPN < 0.55 (slip hazard) | BPN > 0.75 (non-slip grip) |
| Anti-slip aggregate | Quartz sand (Shore < D40); crushes after vehicle traffic | Vitrified corundum (Shore > D80); zero grain crushing |
| UV resistance (QUV) | > 3000 h (ΔE ≥ 1.5) | > 5000 h (ΔE ≤ 1.5) |
| Thermal range (-40 °C to +60 °C) | Softens, discolors and chalks | Zero degradation / stable |
| Seawater immersion | Chalks and discolors after 30 days | No change after 90 days |
| Surface hardness | Shore < D60 | Shore > D70 |
Technical specifications
All technical properties of the Bamdura EcoArmor™ support beams and cribbing blocks at a glance.
| Feature | Specification |
|---|---|
| Standard dimensions | 8000 mm (L) × 200 mm (W) × 200 mm (H), custom lengths and cross-sections available on request |
| Structural architecture | Multi-layer hybrid composite: strand woven bamboo outer armor + bamboo glulam core, or full bamboo glulam |

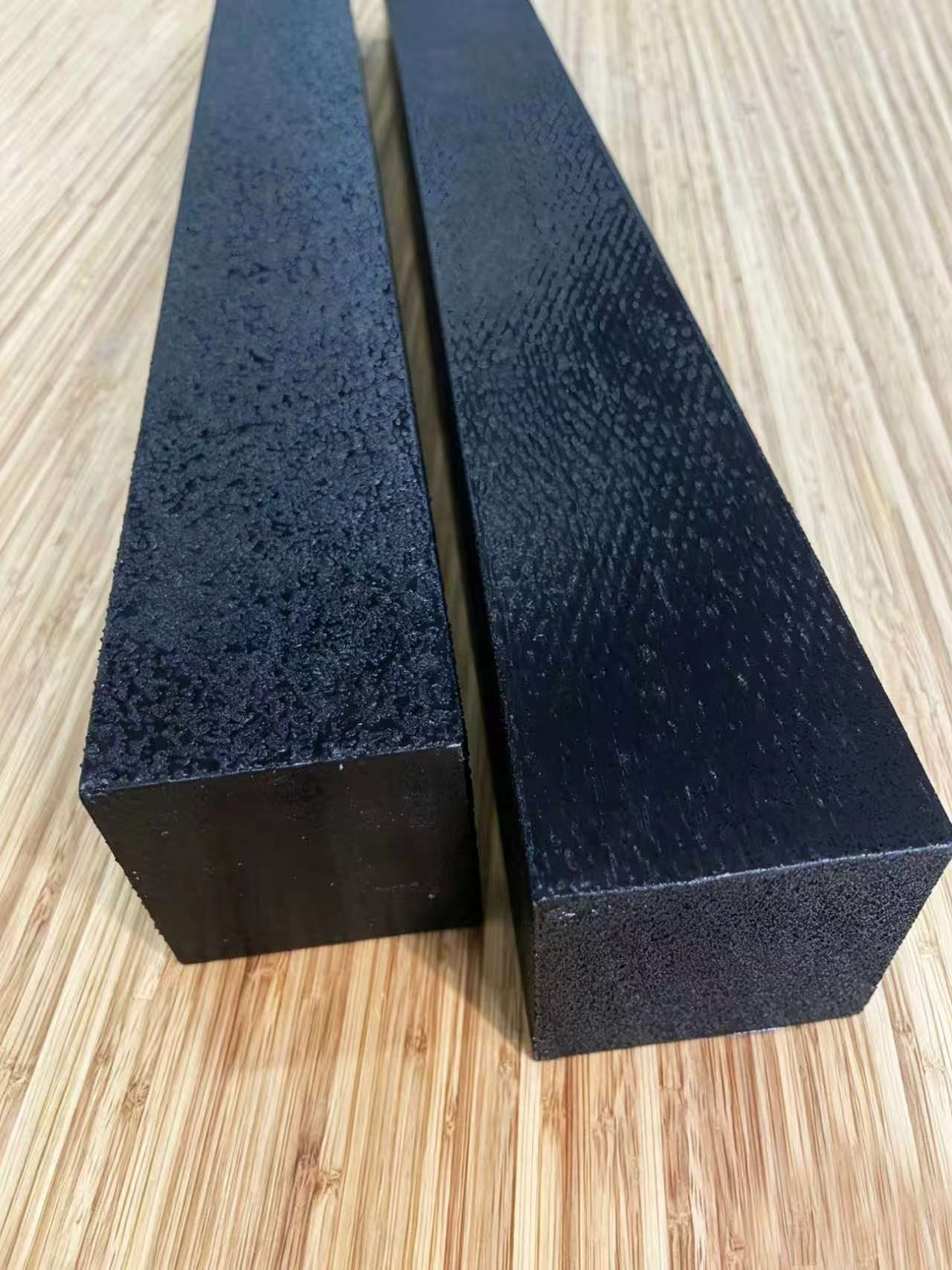

| Surface treatment | Embossed industrial anti-slip traction pattern |
| Protective finish | Multi-layer UV-blocking, water-impermeable industrial coating |

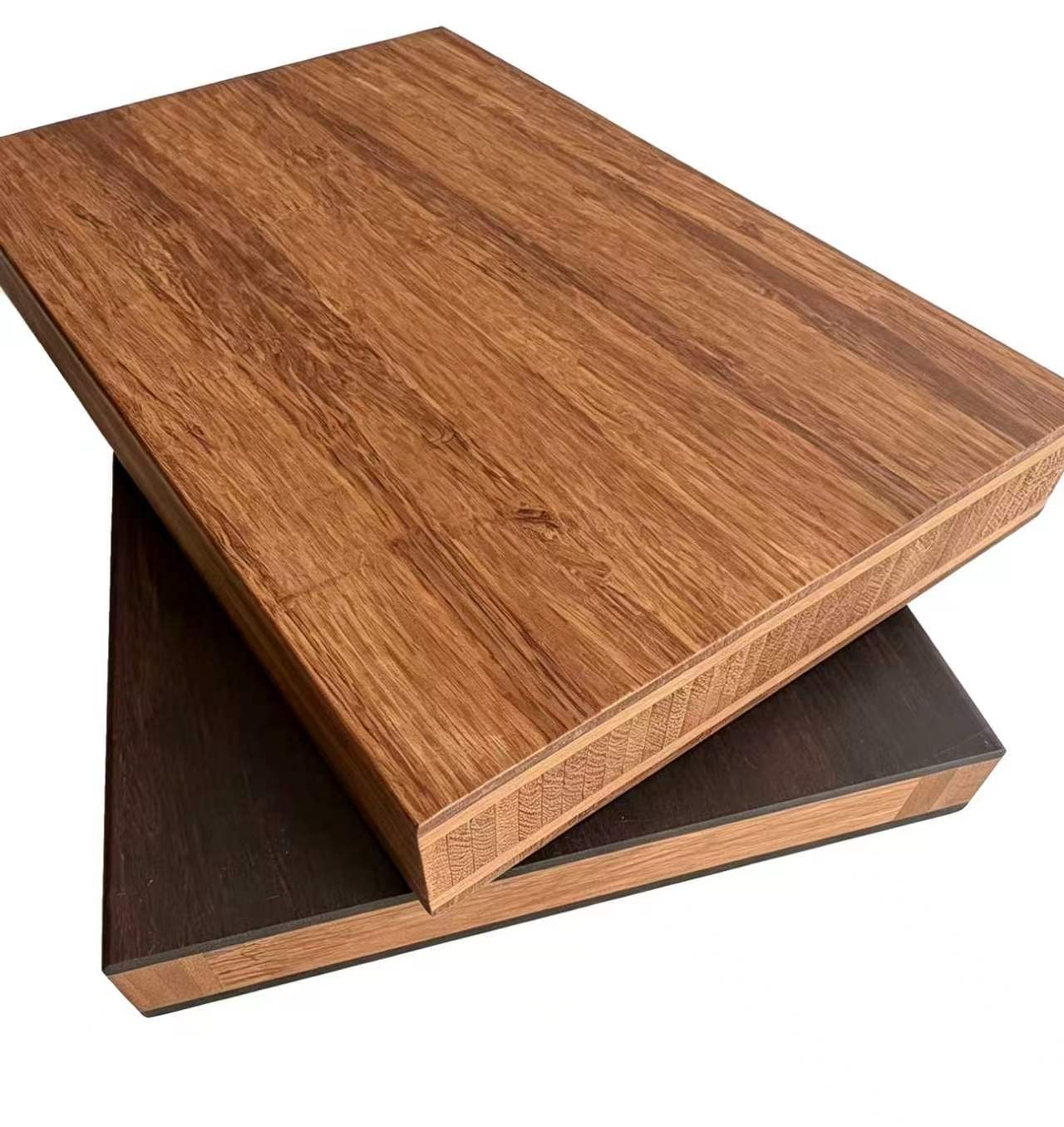

| Color options | Industrial matte black, natural carbonized finish or custom color |
| Environmental attributes | 100% bio-based bamboo fiber matrix, low embodied carbon, carbon-negative potential |
| Custom fabrication | Edge chamfering, pre-drilled rope or steel-wire lifting holes, interlocking joint profiles |
Built for heavy-duty projects
EcoArmor™ provides a stable, sustainable foundation in the most demanding work environments.
Bridge shoring & temporary bents
Temporary beam landing bases, jacking sill supports, bent structures, load-distribution beams and bridge erection platforms.
Crane outriggers & cribbing stacks
Heavy-tonnage stabilizer pads for crawler cranes, all-terrain cranes and pile drivers.
Temporary heavy-haul access tracks
Interlocking haul roadways across wetlands, soft soils, sand and environmentally protected areas.
SPMT dunnage
High-friction, non-marking dunnage for hauling transformers, pressure vessels and wind turbine components.
Marine & port staging
Non-slip, salt-spray-resistant dunnage runners for shipyards, drydocks and offshore fabrication.
Industrial & pipeline protection
Continuous staging runners and ground protection for structural steel and pipeline construction.
EcoArmor™ vs. solid timber and bamboo glulam
Measurable technical advantages over solid timber (pine / mixed hardwood) and standard laminated bamboo.
Higher compressive strength
Face layer 100–130 MPa and core 65–80 MPa, versus 35–65 MPa for solid timber.
Higher bending strength
Bending strength (MOR) approx. 110–140 MPa thanks to the sandwich composite, versus 60–100 MPa for solid timber.
Ultra-low moisture absorption
Surface absorption < 5%, versus 20–40% for solid timber. Highly resistant to rot, swelling and weathering.
Lighter and more efficient
20–30% lighter than solid strand bamboo. Optimized strength-to-weight ratio for transport and positioning.
100% bio-based
Bamboo matures in 3–5 years, timber takes 20–50 years. No deforestation risk.
Solid timber vs. bamboo glulam vs. EcoArmor™
The full comparison matrix of the key performance metrics.
| Performance metric | Standard solid timber (pine / mixed hardwood) | Standard bamboo glulam (laminated bamboo) | Bamdura EcoArmor™ hybrid composite |
|---|---|---|---|
| Cross-section structure | Solid raw sawn lumber / timber logs | Multi-layer parallel laminated bamboo strips | Outer strand woven bamboo armor + interior laminated bamboo core |
| Average density | 0.50–0.85 g/cm³ | 0.65–0.75 g/cm³ | Surface: 1.10–1.25 g/cm³ · Core: ~0.70 g/cm³ · Average: 0.85–0.95 g/cm³ |
| Compressive strength (parallel / face) | Approx. 35–65 MPa | Approx. 60–80 MPa | Face layer: 100–130 MPa; core: 65–80 MPa |
| Bending strength (MOR) | Approx. 60–100 MPa | Approx. 90–120 MPa | Approx. 110–140 MPa (sandwich composite delivers optimized flexural rigidity) |
| Surface hardness & indentation resistance | Soft to medium; prone to deep crushing, gouging and permanent indentation | Medium; denser than softwood, but susceptible to surface splintering under sharp point loads | Armor-grade hardness; outstanding resistance to steel-track abrasion and point-load crushing |
| Moisture absorption & weather resistance | High absorption (20–40%); swells, softens and rots rapidly in wet conditions | Moderate (10–15%); requires continuous glue-line seal protection | Ultra-low surface absorption (< 5%); highly resistant to rot, swelling and weathering |
| Weight & handling efficiency | Relatively light, but requires oversized dimensions to meet high load ratings | Balanced weight; manageable manual and mechanical positioning | Optimized strength-to-weight ratio; 20–30% lighter than solid strand bamboo |
| Environmental & carbon impact | Takes 20–50 years to mature; carries deforestation and sourcing risks | Rapidly renewable (3–5 years); low carbon footprint | 100% bio-based engineered bamboo; verified carbon-sequestering material meeting ESG goals |
EcoArmor™ in numbers
Three measurable benefits that contribute directly to your project and sustainability goals.
Year growth cycle
Bamboo reaches maturity within 3 to 5 years without deforestation, acting as a natural carbon sink.
20–30% lighter
Lighter than full solid strand composites. Faster, more economical transport and crane handling.
Hours of UV resistance
QUV > 5000 hours with ΔE ≤ 1.5. No color change, softening or chalking from -40 °C to +60 °C.
ESG & sustainability – measurable impact
EcoArmor™ helps global contractors meet Scope 3 emissions targets and qualify for green building project standards.
Environment
- Rapidly renewable bamboo (3–5 years)
- No deforestation
- Natural carbon sink
- 100% bio-based bamboo fiber
- Low embodied carbon
Safety
- Anti-slip BPN > 0.75
- Embossed anti-slip texture
- Grip in wet, muddy and oily conditions
- Prevents shifting and lateral sliding
- Zero VOCs, no odor during application
Durability
- Resistant to rot and swelling
- UV-resistant > 5000 hours
- Operates from -40 °C to +60 °C
- 90 days in seawater without degradation
- Zero cracking or delamination
Heavy-duty film faced bamboo panel
High-traction surface overlay with an engineered bamboo laminated core.
Our heavy-duty film faced bamboo plywood is an engineered multi-ply composite panel designed for rigorous industrial, trailer flooring and heavy ground-support applications. Combining the natural tensile strength and elasticity of structural bamboo with a durable, textured phenolic surface overlay, it delivers high dimensional stability, weatherproofing and slip resistance in challenging jobsite conditions.

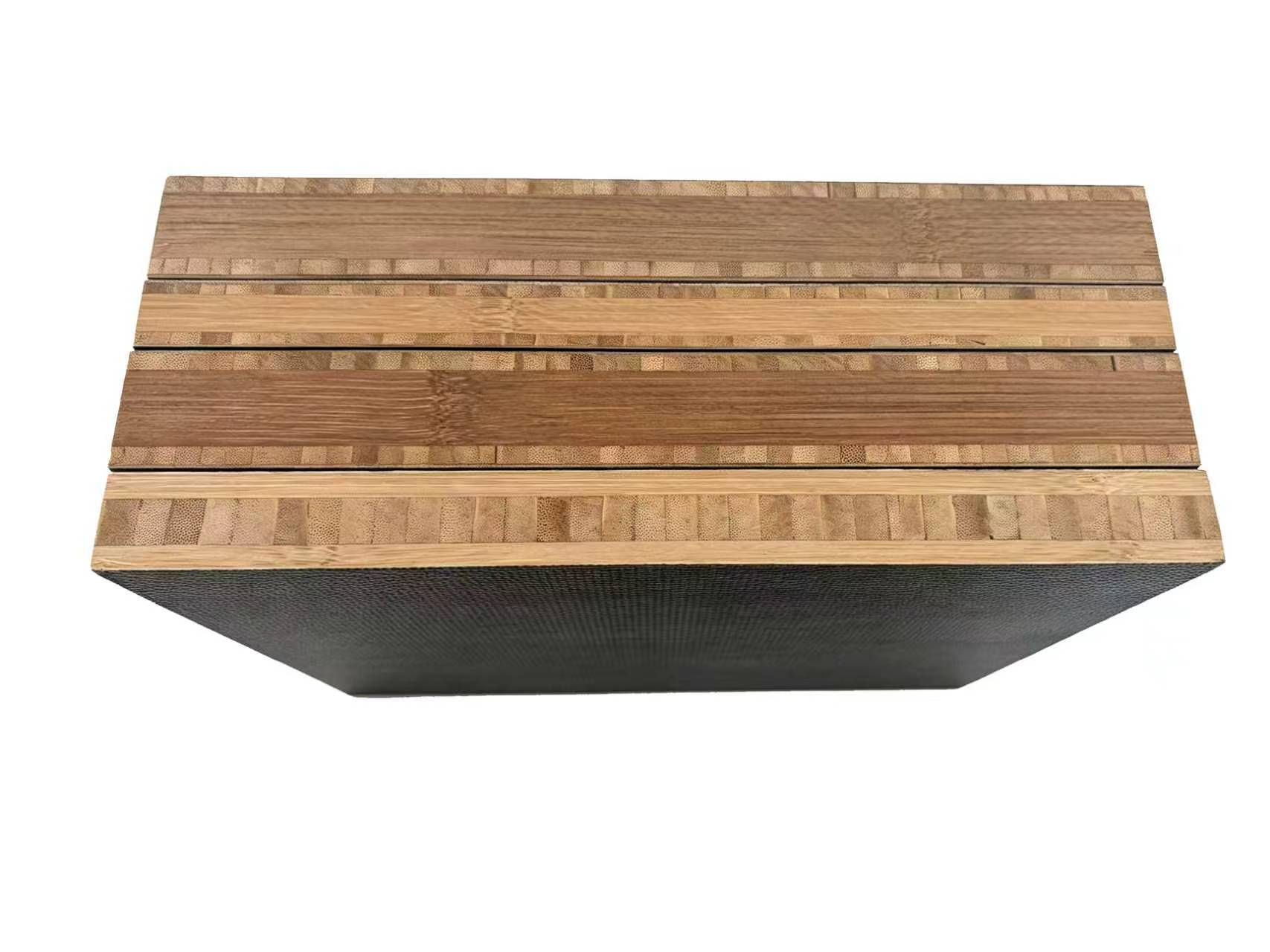

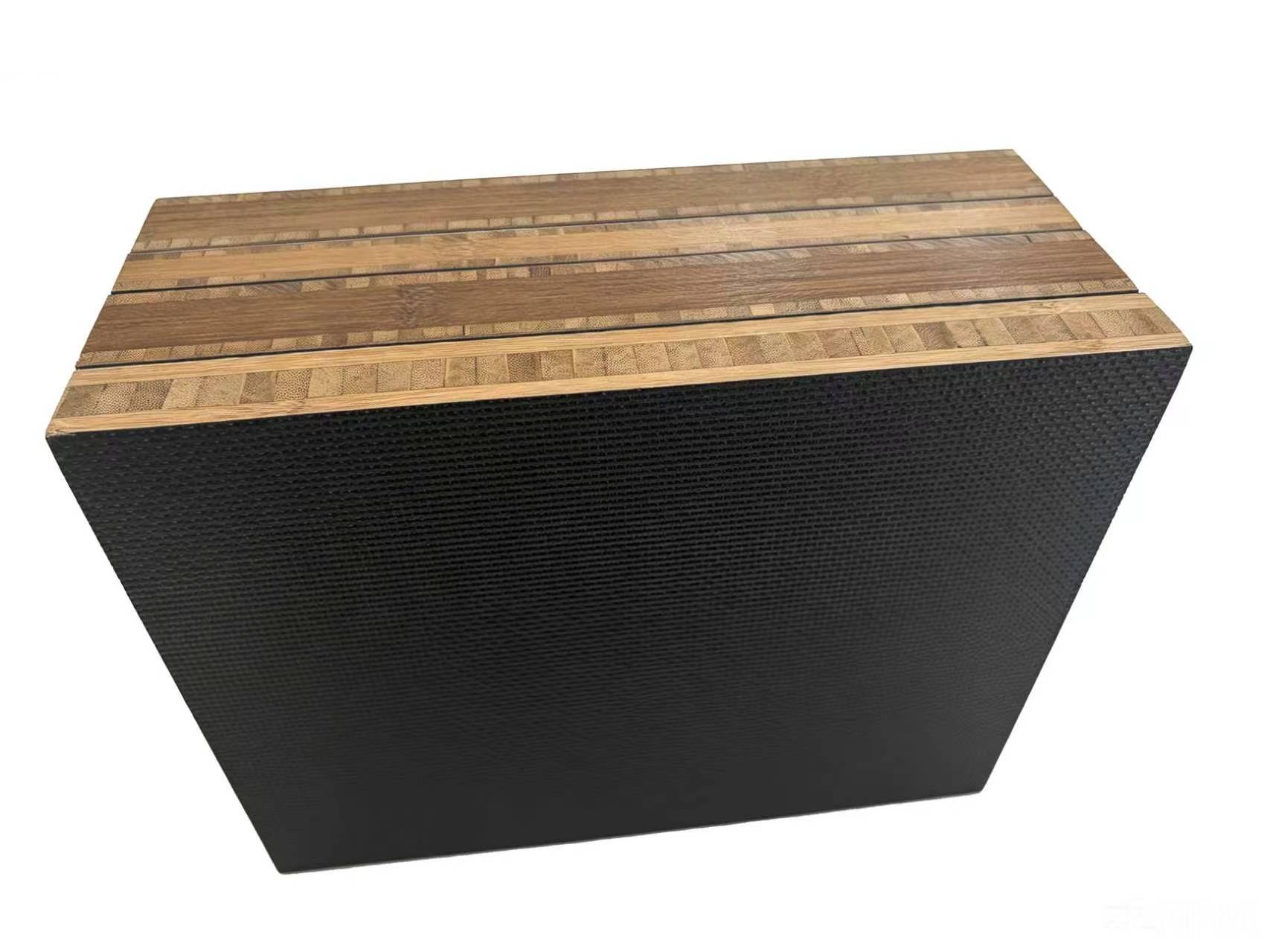

Structural layer breakdown
Cross-section architecture:

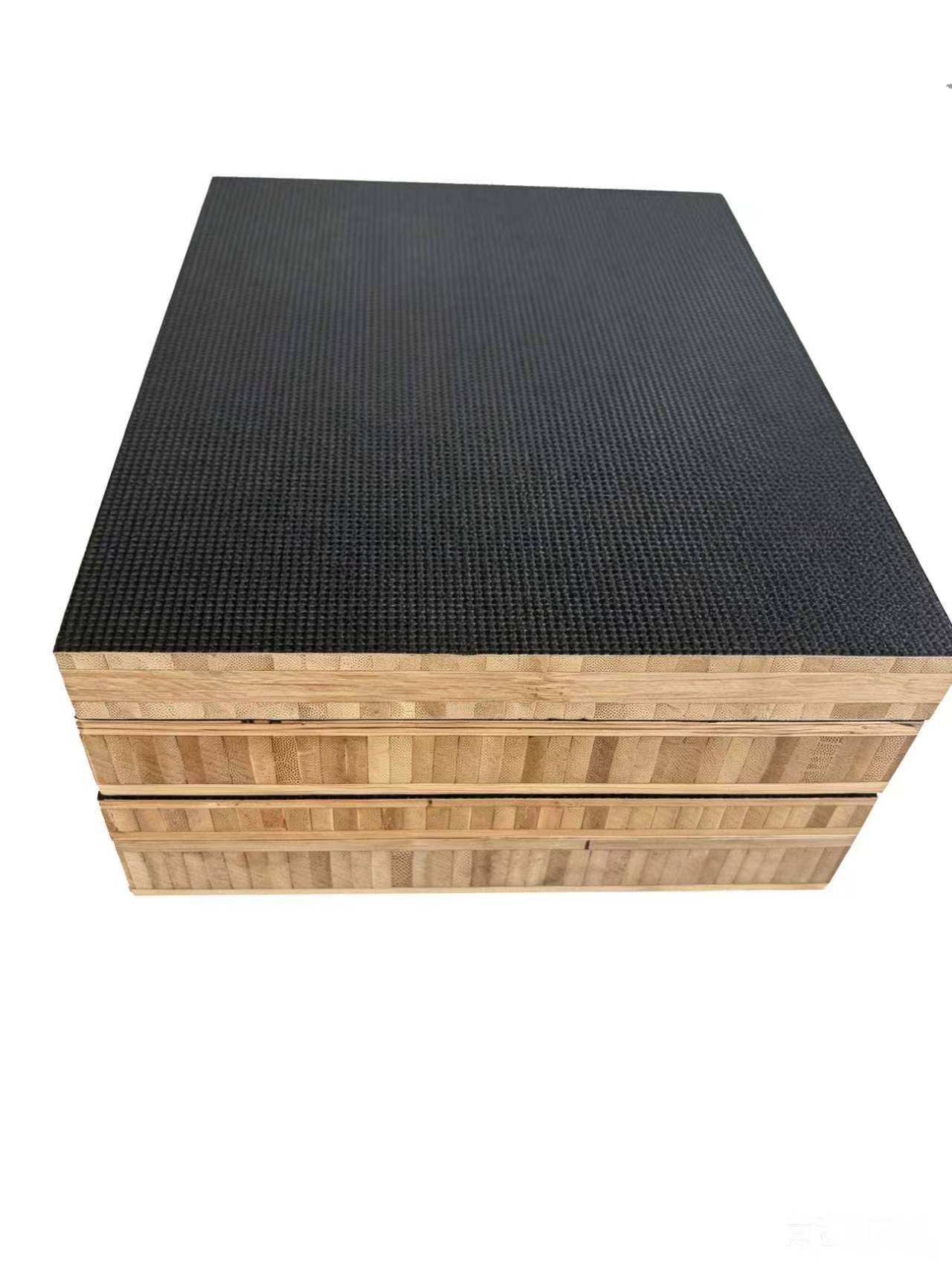

- Top layer: textured phenolic film overlay (wiremesh / honeycomb), hot-pressed onto the bamboo. Maximum grip in wet, oily or muddy conditions and a barrier against water, abrasion and mild chemicals.
- Core: cross-laminated, kiln-dried structural bamboo strips bonded with exterior-grade WBP / phenolic adhesives. Prevents warping, cupping and edge splitting, with superior MOR/MOE compared to timber plywood.
- Bottom layer: smooth or textured balancing phenolic film for structural symmetry and equal moisture balance.
- Edge sealing: bevelled edges treated with an elastic, waterproof PU / acrylic sealant against end-grain moisture absorption.
Available in thicknesses from 15 to 40 mm and in standard sizes 1220 × 2440 mm and 1250 × 2500 mm, or custom CNC cut.
Why choose the film faced bamboo panel?
Strong, slip-resistant and waterproof, built for intensive, repeated outdoor use.
High strength-to-weight ratio
The cross-laminated core delivers higher load-bearing capacity and rigidity than timber plywood of equal thickness, at a manageable weight.
Certified anti-slip safety
The embossed wiremesh / hexagonal pattern grips tires, work boots and outriggers, significantly reducing slip and skid accidents.
Waterproof & rot-proof
Sealed phenolic surface and exterior structural bonding prevent water penetration, swelling, delamination and decay, for reliable multi-cycle outdoor reuse.
High wear & abrasion resistance
The dense film face protects the bamboo from gouging and wear caused by cargo handling, rolling wheels and foot traffic.
Rapidly renewable
Sustainably harvested bamboo with a 3–5 year harvest cycle. A natural carbon sink that helps meet green building and ESG benchmarks.
Fully sealed edges
All four sides are treated with a water-repellent industrial sealant against end-grain moisture absorption.
Film faced bamboo panel applications
For floors, platforms and ground surfaces that carry heavy loads every day.
Outrigger & ground pads
Base support panels for cranes, boom trucks and aerial work platforms.
Vehicle & trailer flooring
Heavy-duty beds for cargo trailers, semi-trailers, box trucks and delivery vans.
Scaffolding & temporary walkways
High-friction decking for scaffolding, stages and temporary pedestrian bridges.
Warehouse staging & dunnage
Non-slip, moisture-isolated staging pads for heavy tooling, structural steel and machine components.
Film faced bamboo panel specifications
Technical properties of the heavy-duty film faced bamboo panel.
| Parameter | Specification details |
|---|---|
| Panel construction | Multi-ply cross-laminated bamboo strip core |
| Surface finish | Phenolic film overlay (wiremesh anti-slip / smooth) |
| Film weight | 120–240 g/m² (customized industrial grades available) |
| Adhesive type | Exterior-grade WBP phenolic / melamine resin (water-boil-proof) |
| Standard thickness | 15, 18, 21, 24, 30, 40 mm (custom thickness on request) |
| Standard dimensions | 1220 × 2440 mm (4' × 8'), 1250 × 2500 mm (custom CNC cutting available) |
| Edge treatment | 4-sided water-repellent industrial sealant |

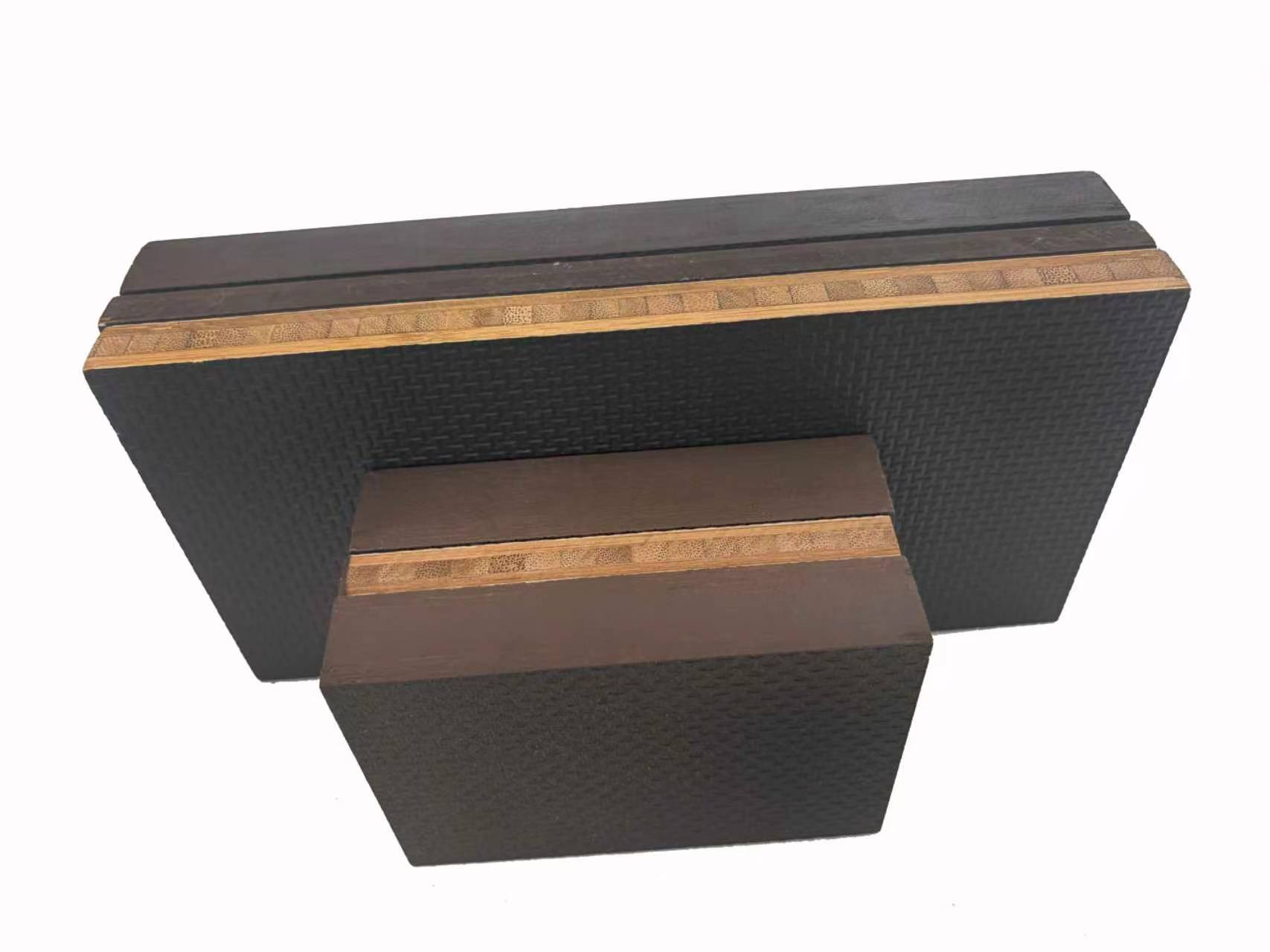

| Color options | Industrial black / dark brown |
